  622-4922-001






Condition Price Delivery Action
NEW OUTRIGHT Call or RFQ Subject to Factory
Valid as of 12/19/14 16:02:10 EST
FEATURES / SPECS / PARTS

622-4922-001

HF Antenna Kit (HF-200)


Rockwell Collins Logo

622-4922-001

FEATURES
    • Similar to the Dayton Granger 45ARM300-140 (product photo is representational)
    • HF Wire Antenna System
    • Frequency: 0.4-30MHz
    • Designed for HF transceivers requiring grounded HF antenna
    • Strain insulator can be added bear forward feed thru to obtain an open HF antenna
    • "V" feed-thru type tension unit for vertical stabilizer
    • Antenna is fed from the rear feed thru insulator
    • Insulation on wire passes thru hole on tension unit
    • Kit contents:
      • 14379
        Copper Clad Steel Wire
      • 25ARM300-20-30
        Insulator Feed Thru
      • 17500-10
        Instalation Intructions
      • 3280
        Anchor Kit Vertical Fin
      • 50ARM300-250
        Tool Wire Release
      • 5ARM300-6CG
        Tension Unit 30Lbs

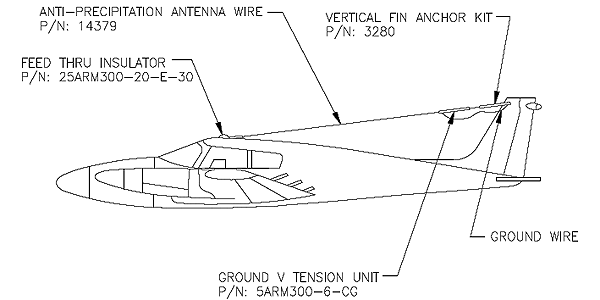

622-4922-001 Diagram
Part NumberHF Antenna Description:
622-4922-001 see details above



Please note that the content on this page is for reference only. It is the responsibility of the installer or installing agency to determine the ultimate eligibility of a part for installation.

AVAILABLE 622-4922-001
Availability details valid as of 12/19/14 16:02:10 EST


Part #: 622-4922-001 HF Antenna Kit
Condition Price Delivery Action
NEW OUTRIGHT Call or RFQ Subject to Factory
